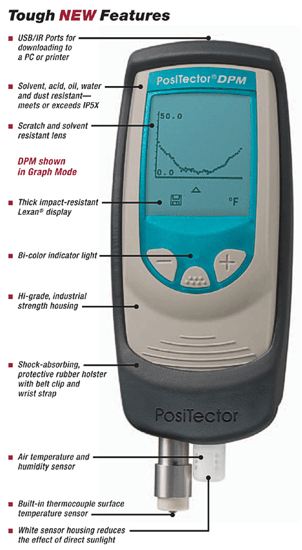

Overview The PosiTector® Model DPM Dew Point Meter measures and records climatic parameters including: relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures. Ideal for surface preparation as required by ISO 8502-4 , BS 7079-B4, ASTM D3276-05 and SSPC-PA7. Features Simple Large, easy-to-read, graphics LCD with multilingual support/ One-handed menu navigation. Audio and visual alarm – indicates when climatic conditions are unsuitable for painting. No need to consult complex tables or use a calculator. Bi-color indicator light – ideal in a noisy environment. All 5 parameters constantly updated and displayed simultaneously. Graph mode to chart all 5 parameters for quick analysis. Durable Rugged, outdoor/indoor instrument. Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X. Scratch/solvent resistant display suitable for harsh environment. Shock-absorbing protective rubber holster with belt clip and wrist strap. Two-year warranty on both on both body and sensors.

Fast response precision sensors provide accurate, repeatable readings with high reliability and long term stability.

Smart Trend Indicators™ identify rising, falling or stable readings.

Certificate of Calibration showing traceability to NIST included.

Conforms to national and international standards including ISO 8502-4 , BS 7079-B4, ASTM D3276-05 and SSPC-PA7.



Internal Memory stores 2,500 datasets in 100 batches with the simple touch of a button.

Each dataset contains 6 values: Relative Humidity, Air Temperature, Surface Temperature, Dew Point, Delta, and date/time when recorded.

Data Logger Mode automatically records all 5 parameters at user selected time intervals. Ideal for unattended operation.

Built-in clock – date and time stamps each stored measurement.

Easily converts to accept optional probes including magnetic and hand-held surface temperature probes.

USB and IR ports for downloading to a PC or printer.

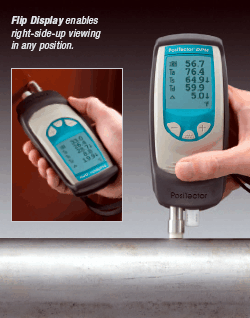

Flip display for right-side-up viewing.

Celsius/Fahrenheit switchable.

Backlit display for dim or dark environments.

Included with Product Humidity, air and surface temperature sensors. Protective rubber holster with belt clip and wrist strap. 3 AAA batteries. Instructions. Nylon carrying case with shoulder strap. Certificate of Calibration traceable to NIST. Two (2) year warranty for body and sensors.

Options Magnetic Surface Temperature Kit Allows instrument and surface temperature probe to be conveniently attached onto steel structures for hands-free recording. Ideal for unattended data logging during the work shift and overnight. Kit includes: Interchangeable lower unit with built-in air temperature/ humidity sensor and a K-type connector that accepts the magnetic surface temperature probe. Magnetic surface temperature probe with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation. Additional rubber holster with magnetic clip to attach the instrument body onto steel structures. PosiSoft Software and USB cable. Durable, hard shell carrying case.

Certificate of Calibration

Accepts other optional K-type thermocouple probes including:
 - Hand-held Surface Temperature Probe – for spot checking hard-to-reach surfaces.
- Self-adhering Surface Temperature Probe – sticks to solid materials including aluminum,
  wood, concrete, etc. Ideal for unattended monitoring.
- Liquid Temperature Probe – general purpose probe with stainless steel shaft.

PosiSoft for Windows analysis software

Downloads stored measurement results from PosiTector DPM to a PC.

Allows entry of notes and annotations.

Prints and displays charts and histograms.

Exports to a document or spreadsheet.

Includes USB cable.

Free updates

IR Printer Receives data from PosiTector DPM via wireless infrared. Prints both text and graphics. Battery-operated. Light-weight. One-year warranty.
AC Power Adapter An alternative to using your PC's built-in USB port as a power source for your PosiTector DPM. This adaptor provides continuous power by using any AC wall electrical outlet and the supplied USB cable. Simply plug one end of the USB cable into the power adapter and the other into the PosiTector DPM's USB port.



Specification	Range	Accuracy	Resolution
Surface   Temperature	-40° to 80°C	±0.5°C	0.1°C
	80° to 190°C	±1.5°C
	-40° to 175°F	±1°F	0.1°F
	175° to 375°F	±3°F
Air Temperature	-40° to 80°C	±0.5°C	0.1°C
	-40° to 175°F	±1°F	0.1°F
Humidity	0 to 100%	±3%	0.1%
Dimensions	7" x 2.5" x 1.2" (178 x 64 x 31 mm)
Weight	185 g (6.5 oz) without batteries
