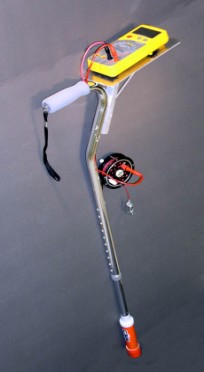

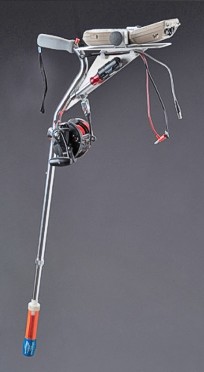

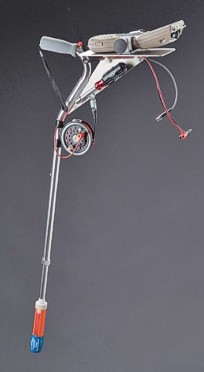

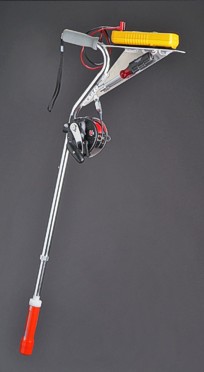

TY100拐杖式测试卷线

添加时间:2010-10-26 编辑:X061 阅读:

  • 产品名称:TY100拐杖式测试卷线
  • 产品定货号:MS-00334-00
  • 产地:美国
  • 推荐:
Test Canes & Data Canes for
Effortless CP Potential Readings & Logging

Data Cane Model TY-100
Reel with 100 ft of test wire
For use with digital voltmeter
Data Cane Model DY-100
Reel with 100 ft of test wire
For use with data logger

Models TY-100 & DY-100

Specifications
Model TY-100
Model DY100
Dimensions
Adjustable height from 30" to 39"
Weight
4 lbs (without instrument or half cell)
Tubing Material
Aluminum
Reel
Pflueger Model 1595 ½ RC single-action reel
Wire
100 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red).
Instrument Mount
Mounting bracket with adjustable screw grips
Electrode/Half Cell
1/4-20 female threaded connector compatible with most half cell reference electrodes
Tools
One (1) 7/16" nut driver mounted on cane
Warranty
Warranted for defects and workmanship for one year from date of purchase.
Setup
Fully wired to accept any digital voltmeter*
Fully wired to accept any data logger or data collector*
Data Logger Entry

Data entry pushbutton.

* Voltmeter, data logger or half cell not supplied with cane.

Data Cane Model TY-250
Reel with 250 ft of test wire
For use with digital voltmeter
Data Cane Model DY-250
Reel with 250 ft of test wire
For use with data logger


 Models TC-250 & DC-250

Specifications
Model TY-250
Model DY250
Dimensions
Adjustable height from 30" to 39"
Weight
6 lbs (without instrument or half cell)
Tubing Material
Aluminum
Reel
Penn 345 GTi Level Wind Reel
Wire
250 ft (minimum) of #22 awg 7/30 tinned copper with 0.015" (minimum) avg thick PVC coated wire (red).
Instrument Mount
Mounting bracket with industrial grade Velcro®
Electrode/Half Cell
1/4-20 female threaded connector compatible with most half cell reference electrodes
Tools
One (1) 7/16" nut driver mounted on cane
Warranty
Warranted for defects and workmanship for one year from date of purchase.
Setup
Fully wired to accept any digital voltmeter*
Fully wired to accept any data logger or data collector*
Data Logger Entry

Data entry pushbutton.



产品名称产品简介产品编号
拐杖式测试卷线Back-saving & time saving devices to assist corrosion;professionals in measuring pipe-to-soil potentials MS-00334-00
