15XP-A数字万用表

添加时间:2010-11-1 编辑: 阅读:

  • 产品名称:15XP-A数字万用表
  • 产品定货号:MS-00380-00
  • 产地:美国
  • 推荐:


Description

Amprobe’s 15XP-A Digital Multimeter is compact and highly capable DMM for electronics and test applications. The 15XP-A is the right DMM choice for electronics engineers, technicians and field service.




Features

750 VAC / 1000 VDC - highest voltage ratings in this size digital multimeter.

Special 2000 MΩ measurement range.

3-1/2 digit liquid crystal display (LCD)  reading to 1999

Autoranging display for faster measurements.

Automatic polarity, positive implied, negative polarity indicated.

TTL logic test for digital circuits.

Diode test for component level troubleshooting.

Data Hold freezes display to capture readings.

Integrated tilt stand for easy bench use.

Powered by single 9V battery.

Wide choice of Amprobe multimeter accessories

Specifications




DC Voltage Ranges

200 mV, 2 V, 20 V, 200 V, 1000 V

DC Voltage Accuracy

± 1.0% rdg ± 1 digit

AC  Voltage Ranges

200 mV, 2 V, 20 V, 200 V, 750 V (45-100 Hz)

AC Voltage Accuracy

± 1.5% rdg ± 5 digits

Voltage Resolution

100 µV

Voltage Input Impedance

400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to 1000 V: 9.1 MΩ

Voltage Overload Protection

1000 VDC or 750 VAC rms

DC Current Ranges

200 μA, 2000 μA, 20 mA, 200 mA, 2A

DC Current Accuracy

± 1.5% rdg ± 1 digit

AC Current Ranges

200 μA, 2000 μA, 20 mA, 200 mA, 2A

AC Current Accuracy

± 2.0% rdg ± 5 digits

Current Resolution

0.1 µA

Current Overload Protection

2A/1000 V fast blow ceramic fuse, 6.3 x 32 mm on A input.

Resistance Ranges

200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 2000 MΩ,

Resistance Resolution

100 mΩ

Continuity Test

Audible indication at < 25 Ω in 100 ms

Diode Test

1.2 mA, 3.0 Vdc

Logic Test

TTL levels to 20 MHz, 25 ns minimum pulse width

Non-Contact Voltage Indicator

Sense voltage 70 V to 600 Vac (50-60 Hz). Beeper chirps and red LED comes on. Works on all ranges.

Display

3-1/2 digit (1999 count) LCD display

Polarity

Automatic, positive implied, negative indicated.

Overrange

Overload displays (OL) or (-OL)

Zero

Automatic

Low Battery Indication

Battery symbol is displayed.

Auto Power Off

In approximately 10 minutes

Measurement Rate

2 times per second

Operating Temperature

0°C to 50°C (32°F to 122°F) at < 70% RH

Storage Temperature

-20°C to 60°C, < 80% RH (with battery removed)

Altitude

Operation below 2000 m. Indoor use.

Power Supply

Standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22

Battery Life

200 hours typical with carbon-zinc

Dimensions

155 x 72 x 32 mm (6.1 x 2.8 x 1.3 in)

Weight

210 g (7.4 oz)

Warranty

1 year

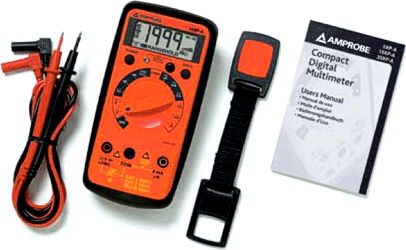

Included Accessories



Pair of test leads (TL245A), fuse 2 A/1000 V (P/N FP200), 9 V battery (installed),
Magne-Grip™ holster with magnetic hanging strap, users manual.

Other Accessories


VC30A, Carrying Case

DL243D, Test Lead Kit
