产品描述:

HDT powerON LAB 500
Triple Output Laboratory Power Supply



Characteristics:

Linear controlled DC laboratory power supply with
max. 2 x 90 W output power
Multipurpose constant voltage or constant current source
Switchable display
LED display for constant current mode
Standard integrated measurement input for measuring external DC voltages replaces additional digital voltmeter
Output value setting via 10-turn potentiometer
Outputs connectable in series or parallel
Additional 5 V/3 A constant voltage output with current fold-back and LED display

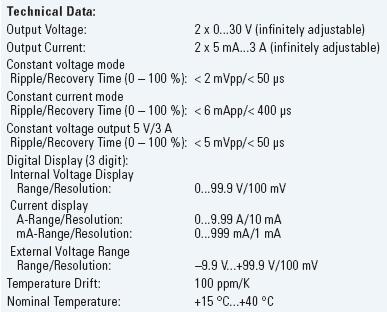

Technical data:

Output Voltage
Output Current
Constant voltage mode
Ripple/Recovery Time
(0 – 100 %)
Constant current mode
Ripple/Recovery Time
(0 – 100 %)
Constant voltage output (DC)
Ripple/Recovery Time
(0 – 100 %)
Digital Display (3 digit)
Internal Voltage Display Range/Resolution
Current display
A-Range/Resolution
mA-Range/Resolution
External Voltage Range
Range/Resolution
Temperature Drift
Nominal Temperature
Protection Class
Nominal Voltage
Power Consumption
Dimension W x H x D
Weight
2x 0...30 V (infinitely adjust.)
2x 5 mA...3 A (infinitely adjust.)
< 2 mVpp/< 50μs

< 6 mApp/< 400 μs

5V/3A
< 5 mVpp/< 50μs
0...99.9 V/100 mV


0...9.99 A/10 mA
0...999 mA/1 mA
-9.9 V...+ 99.9 V/100 mV
100 ppm/K
+ 15 °C...+ 40 °C
I
230 V ± 10 %, 50...60 Hz
approx. 1.9 A
326 x 135 x 225 mm
approx. 10 kg





Scope of Supply:



1 pc HDT powerON LAB 500
1 pc Instruction Manual
